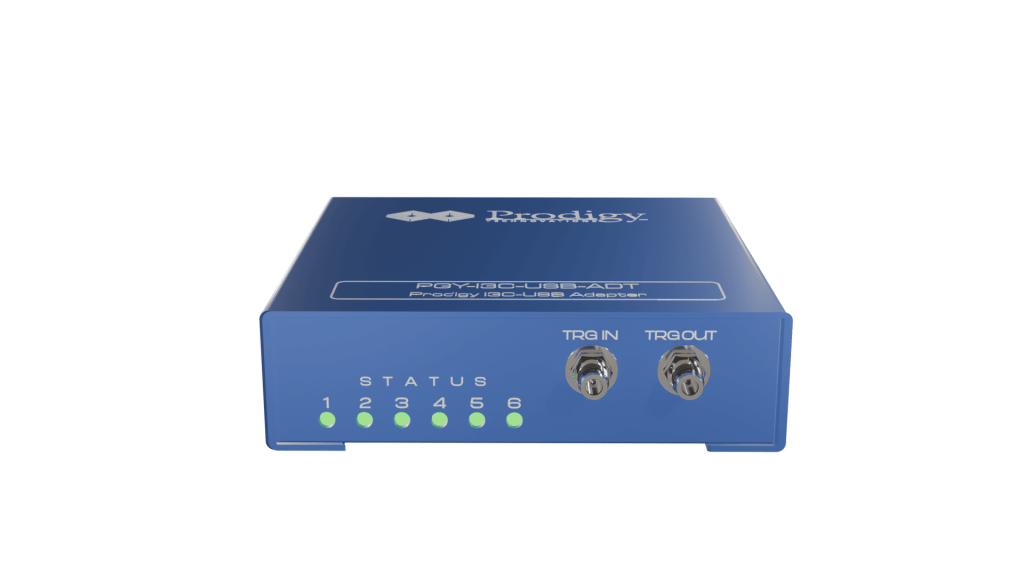

I3C USB Adapter
Model No: PGY-I3C_USB_Adapter

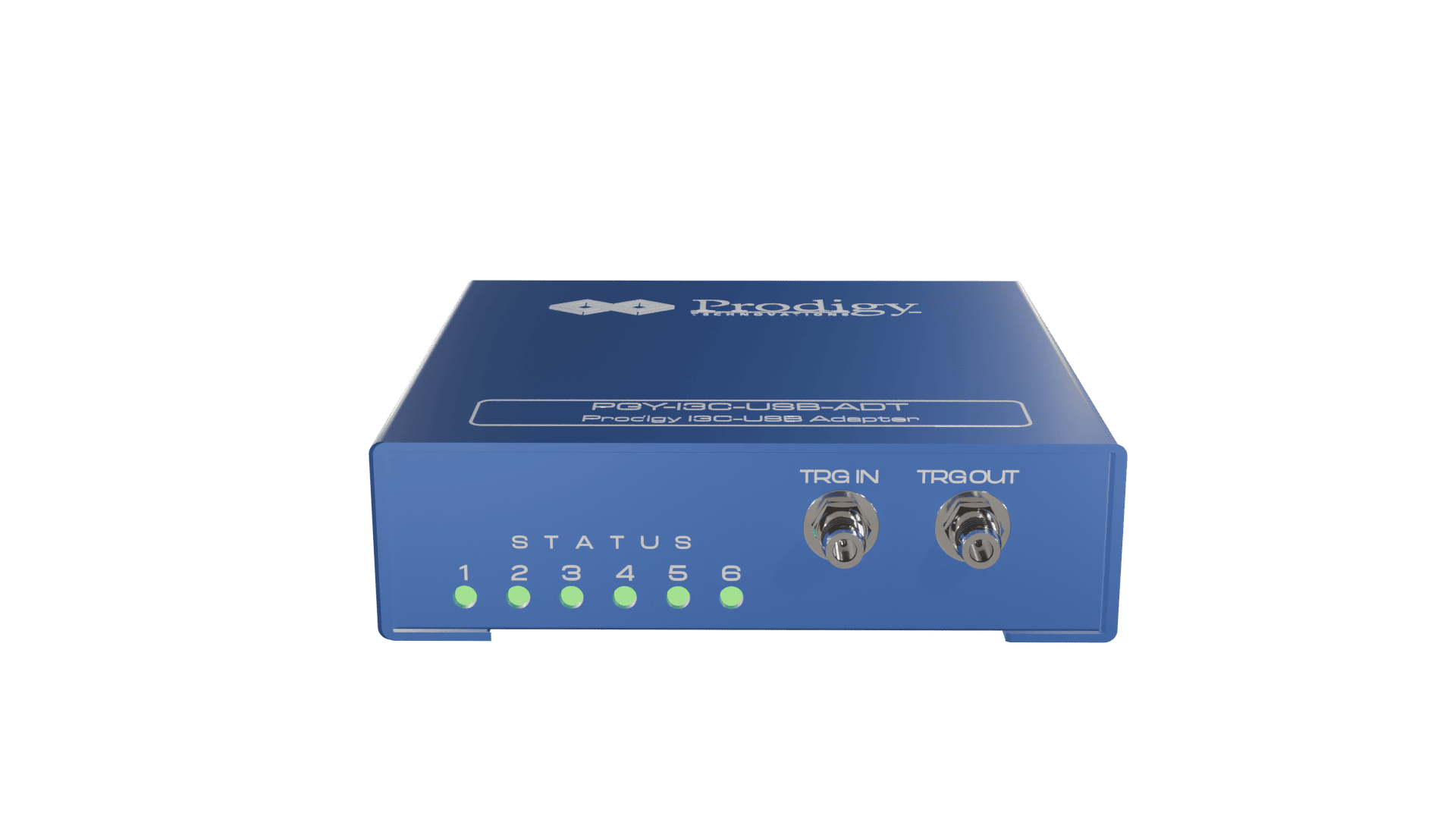

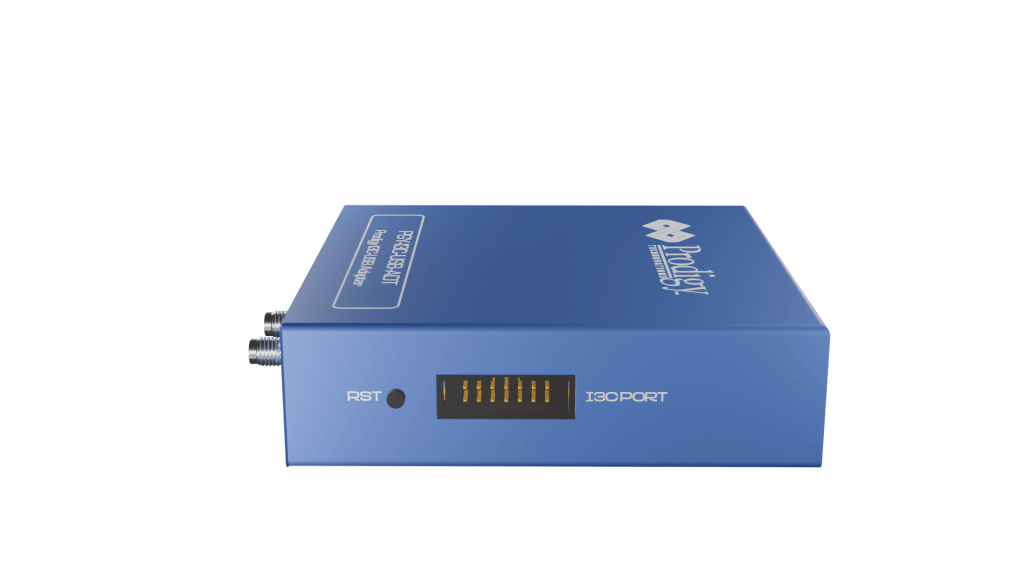

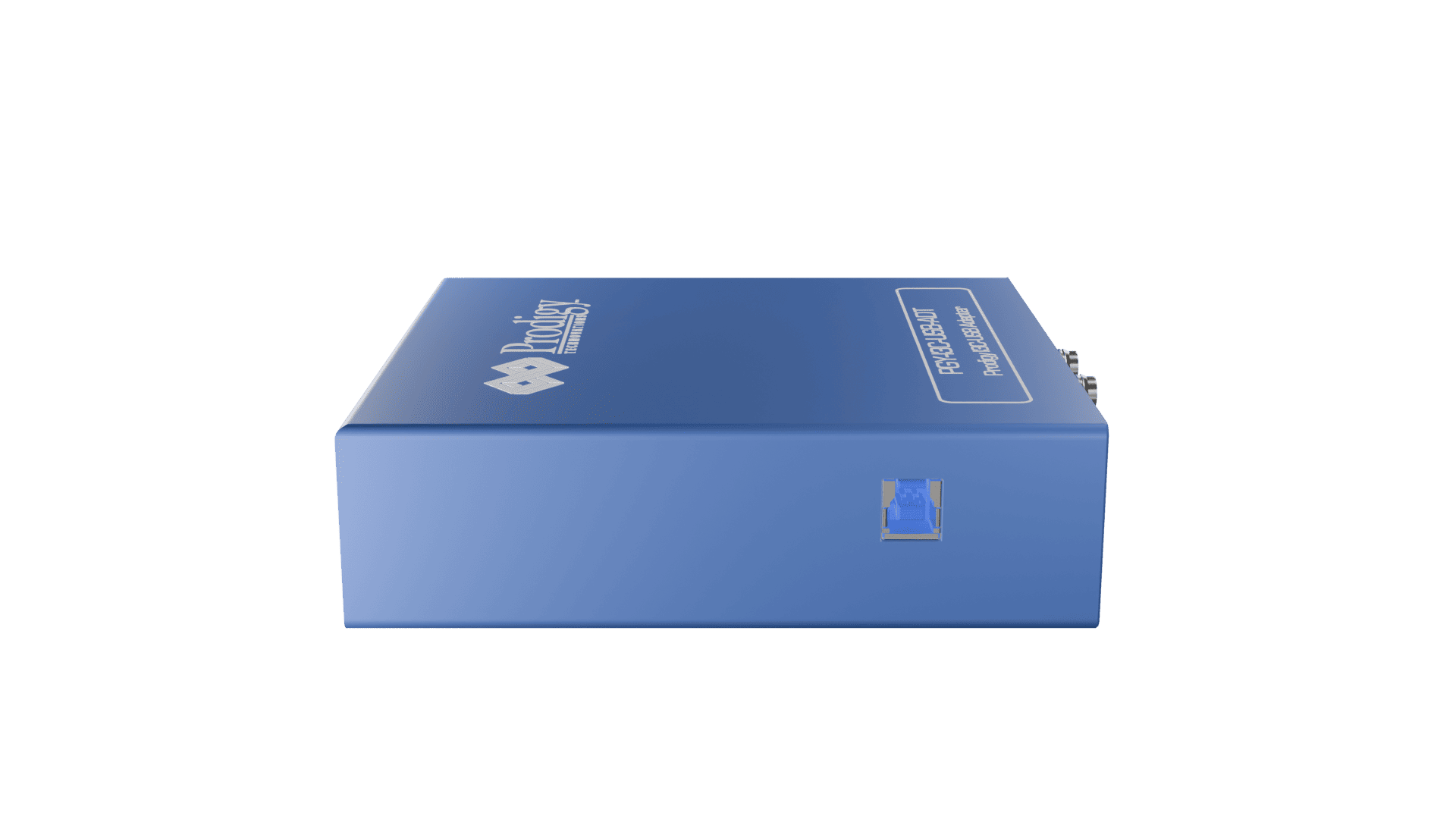

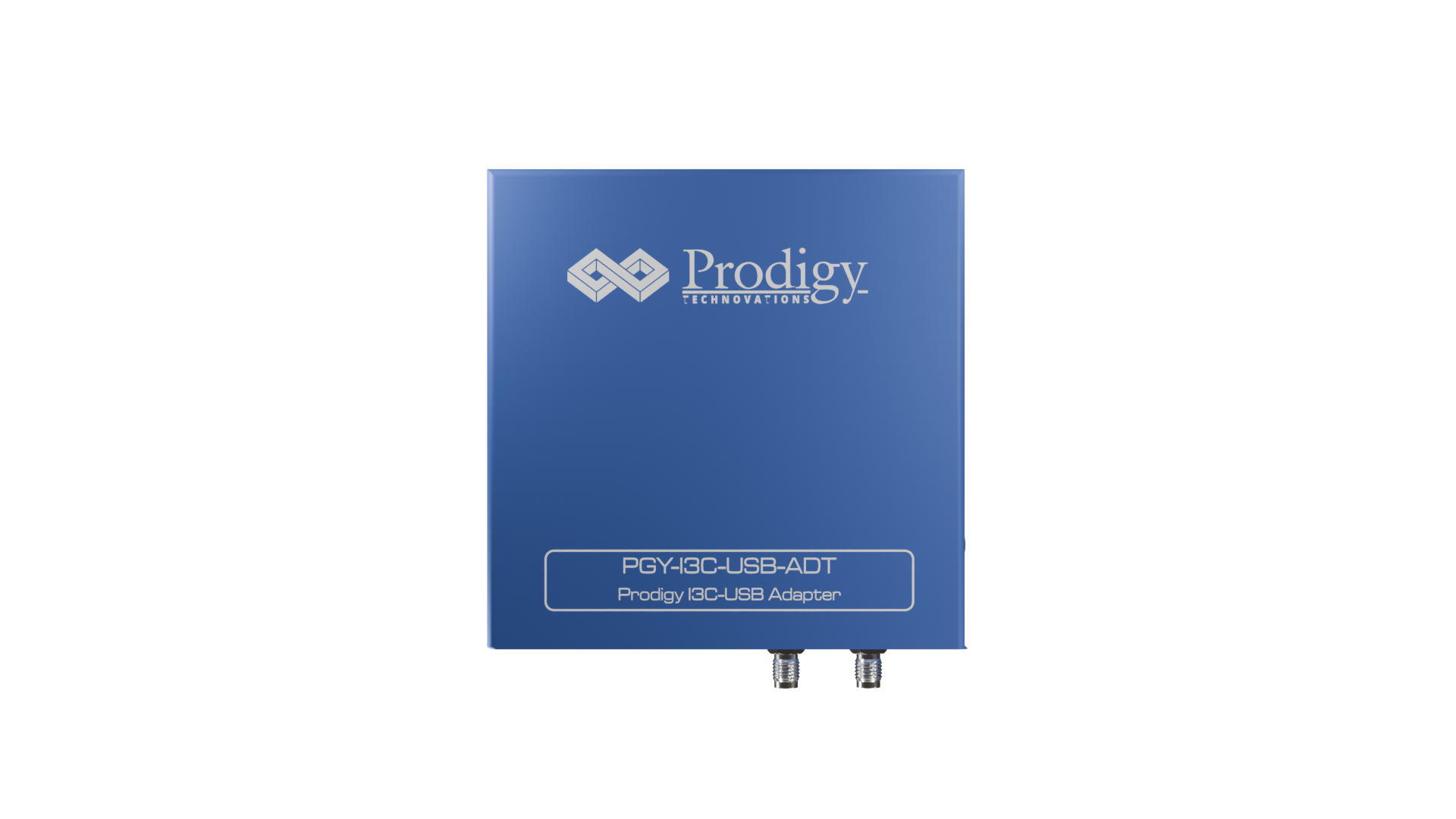

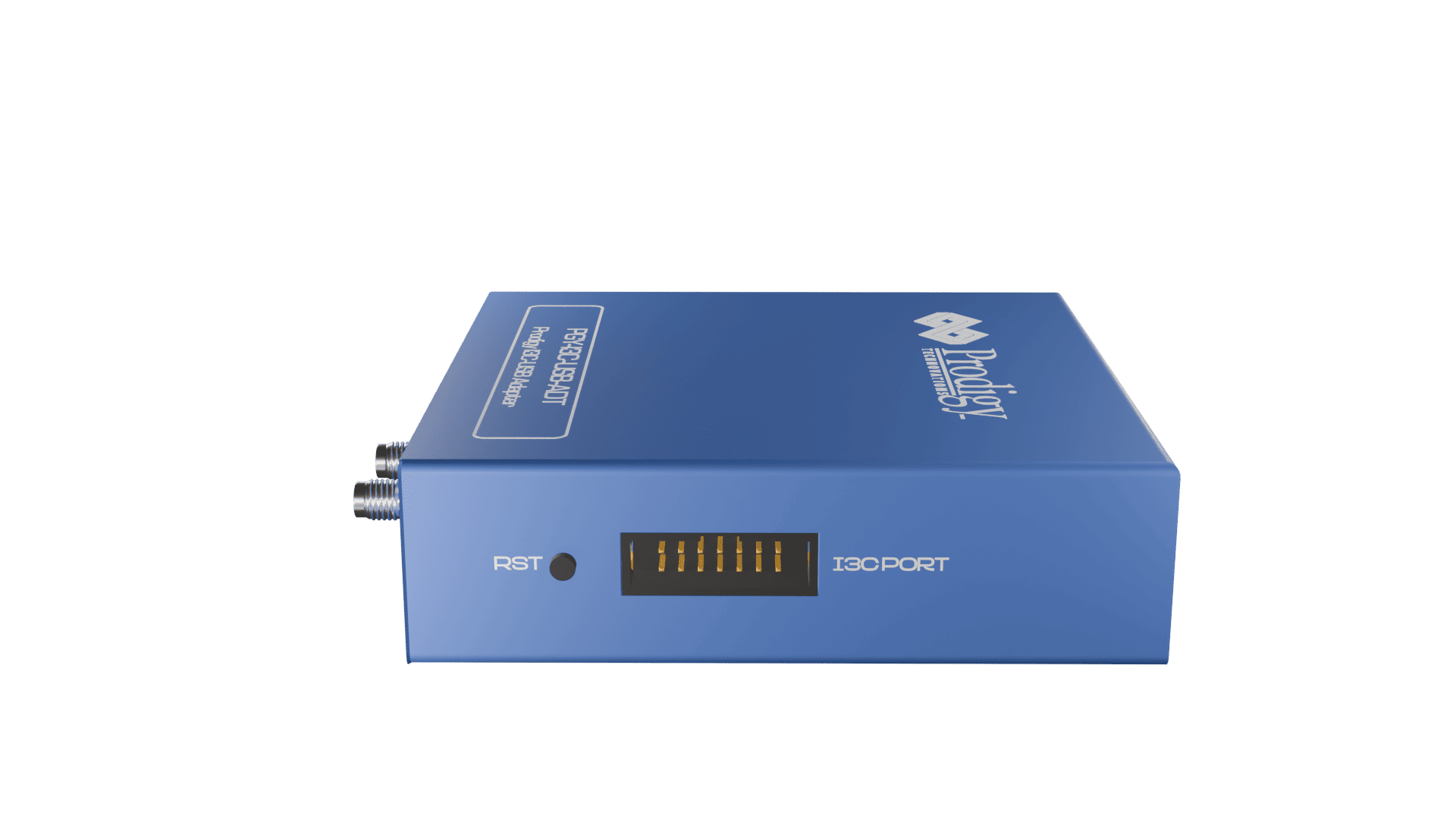

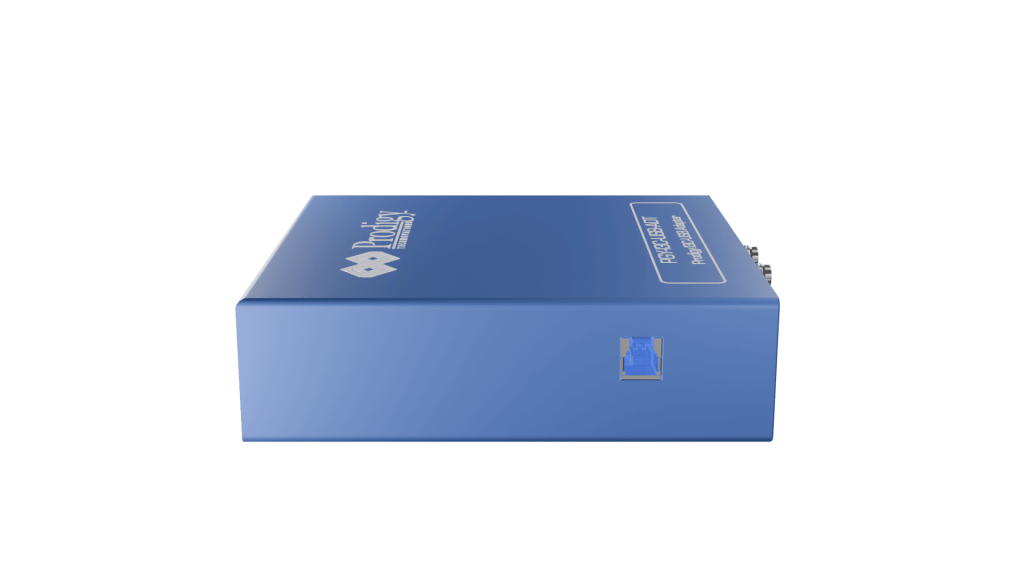

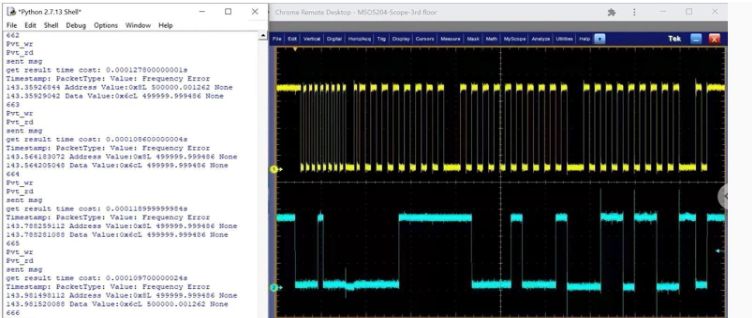

The PGY-I3C_USB_Adapter provides the ability to operate its features from Third party application using function calls. All access to hardware is performed through a high-level application programming interface (API). It encapsulates common procedures that the user would need to perform to setup and use an I3C interface.
- I3C
Free Online Technical Support
Free Software Updates
Global Sales Support
Evaluation Units Available
- Key Features
- Specifications
In such a way, it allows third party application to have access over the connected I3C/I2C bus of the target, which includes
- ConfiguringNode as Master/Slave
- GeneratingTraffic
- MonitorNetwork Traffic
- ReportGeneration
Users can easily set up the analyzer to generate I3C/I2C traffic using Linux support.This representation of information makes it an industry-best offering and an easy-to-use solution to debug the I3C protocol activity. This can be used when you have a very limited budget but still want a host and device configuration which is capable of handling API scripting. This representation of information makes it an industry-best offering and an easy-to-use solution to debug the I3C protocol activity
| Features/Specifications | Description |
|---|---|
| Exerciser: | |
| Configurable | 1 Master + 1 Slave |
| I3C/I2C Traffic Generation | Custom I3C/I2C Traffic Generation |
| SCL Frequency Variation | 100KHz-12.5MHz |
| Simulate Real-world traffic | Supported |
| Voltage Levels supported | Fixed 1V, 1.2V, 1.8V, 2.5V, and 3.3V |
| Hot-Join and IBI | Supported |
| IBI Response Feature | Not supported |
| Clock to Data Delay (tCO) | Supported, in steps of 10ns |
| Delay Between Messages (tIMG) | Supported, in steps of ns, us, ms and seconds |
| Set up and Hold Variations | Not Supported |
| Error injection | Not Supported |
| CTS v1.1 Support | Not Supported |
| API Support | Supported in Python |
| CCC Support | All CCC's are supported on the Master side as per I3C v1.0 |
| Protocol Analyzer: | |
| Protocol Analysis | I3C/I2C |
| Analyzer Resolution | 4ns |
| Capture Duration | Continuous streaming of protocol data to host HDD/SSD for long-duration capture |
| Protocol Error Report | S0 to S5 types of errors as specified in the I3C specifications CRC errors in DDR traffic ACK/NACK Errors (Slave) Master Abort Non-Standard frames Non-standard Frames Start, Stop and HDR exit patterns. |
| Custom Commands | Not Supported |
| Host Connectivity | USB 2.0/3.0 |
Comparative Analysis: PGY-I3C-EX-PD Vs PGY-I3C-EX-PD Lite Vs PGY-I3C- USB-ADT
| Key Features | PGY-I3C-EX-PD | PGY-I3C-EX-PD Lite | PGY-I3C-USB-ADT |
|---|---|---|---|
| I3C Protocol Exerciser and Analyzer from 1Hz to 12.5MHz (SDR, HDR, TSP encoding) | Yes (Beyond I3C Spec) | Yes (1KHz to 12.5MHz as per I3C Spec) | Yes (1KHz to 12.5MHz as per I3C Spec) |
| Master (Controller) and/either Slave Support (Target) | Yes (1 Master + 3 Slave) | Yes (1 Master + 1 Slave) | Yes (1 Master + 1 Slave) |
| Amplitude and Timing Variation | Yes (1V to 3.3V in steps of 30mV) | Fixed Amplitude (1V, 1.2V,1.8V, 2.5V, 3.3V) | Fixed Amplitude (1V, 1.2V, 1.8V, 2.5V, 3.3V) |
| Protocol Error Injection | Yes | No | No |
| Hot Join and In-Band Interrupt Support | Yes | Yes | No |
| Hardware based Protocol Aware Trigger | Yes | Yes | No |
| 13C Conformance Test Suite Support (13C-CTS) | Yes | No | No |
| API Support | Yes (In Python and C++) | Optional | Yes(windows & Linux OS) |
| Electrical validation of 13C Specification | No | No | No |
| Applications | Post Silicon Protocol Validation, Pre Silicon Protocol Traffic Generation at Emulation and Prototype Design Stage | Emulation of Master or Slave, Application Engineering team, System Design and Validation | Production Test Solution |
| Price | X | 0.5X | 0.2X |
| Value Proposition | Performance Solution | Firmware development and Field Application | Production |
Ordering Information
PGY-I3C_USB_Adapter: (Supports only v1.0 specifications) API Support for Linux/Windows.
Deliverables for PGY-I3C-USB_Adapter
- PGY-I3C_USB_Adapter Unit
- USB 3.0 Cable
- Flying lead probe cables with female connectors to connect to DUT
- PGY-I3C_USB_Adapter Software in CD
Similar Products
-

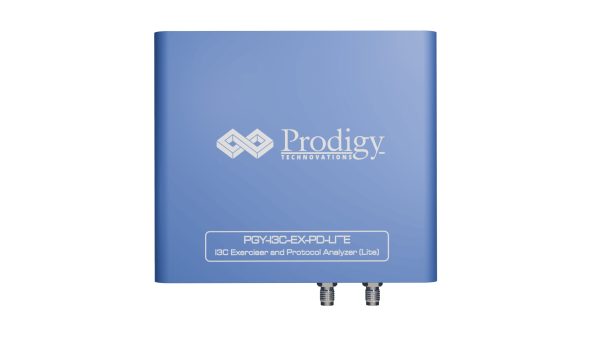

Protocol Exercisers & AnalyzersI3C Protocol Exerciser and Analyzer – Lite
